• Front/rear black bumpers
• Painted grille
• Sealed-beam headlights
• Telescopic trailer tow mirrors
• Solar tinted glass
• Intermittent windshield wipers
• Hinged 60/40 side cargo doors

• Dual vinyl front bucket seats
• Inboard armrest on front seats
• Front black vinyl floor covering
• Black plastic stepwell pads
• Tilt steering column

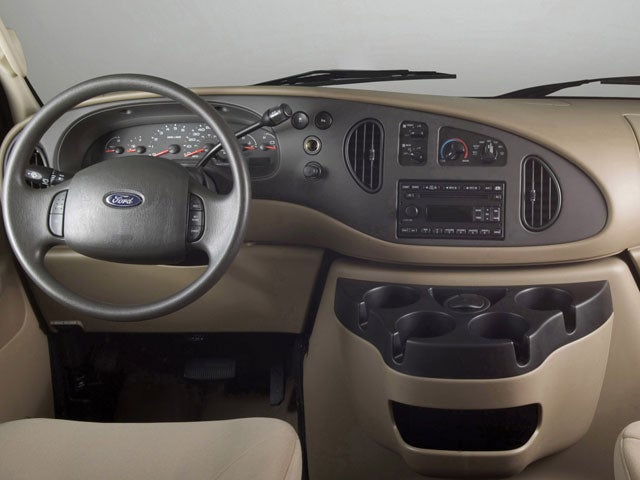

• Medium dark flint-color instrument panel-inc: tachometer
• Tire pressure monitoring system
• AM/FM stereo radio-inc: (2) speakers, digital clock
• Front air conditioning
• 12-volt pwr point in instrument panel
• LH/RH black cowl trim panels
• Front vinyl headliner
• Medium flint-color trimmed vinyl sun visors
• Driver & front passenger A-pillar interior grab handle
• Lights-inc: front dome, rear cargo
• Courtesy light switches on all doors

• Pwr 4-wheel anti-lock disc brakes
• Driver & front passenger second generation airbags
• Medium flint-color safety belts w/height adjustable D-ring
• Electric dual note horn

4.6L SOHC EFI V8 "TRITON" ENGINE

• (STD)

• Exterior Mirrors Manual Telescoping
• ABS Brakes (4-Wheel)
• Seats Front Seat Type: Bucket
• Air Conditioning - Front
• Airbags - Front - Dual
• Front 12V Power Outlet(s)
• Front Suspension Classification: Independent
• Electronic Brakeforce Distribution
• Auxilliary Transmission Fluid Cooler
• Windows Front Wipers: Intermittent
• Center Console Front Console With Storage
• Steering Wheel Tilt-Adjustable
• Suspension Stabilizer Bar(s): Front
• Air Conditioning - Front - Single Zone
• Doors Rear Door Type: Barn
• Doors Side Door Type: Passenger-Side Hinged Swing-Out
• Audio - Antenna: Mast
• Clock
• Exterior Mirrors Manual
• Front Suspension Type: Twin I-Beam
• Warnings And Reminders Low Fuel Level

• Vehicle
• Rear Door Type: Dual
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 115
• Maximum Alternator Watts: 1725
• Cooling System
• Total Cooling System Capacity (qts): 25.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3700
• Gross Axle Wt Rating - Rear (lbs): 5520
• Curb Weight - Front (lbs): 2932
• Curb Weight - Rear (lbs): 2344
• Gross Vehicle Weight Rating Cap (lbs): 8900
• Gross Combined Wt Rating (lbs): 11500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 900
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Multi-Leaf 2-Stage
• Spring Capacity - Front (lbs): 3700
• Spring Capacity - Rear (lbs): 5545
• Axle Type - Front: Twin I-Beam
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 5000
• Axle Capacity - Rear (lbs): 5520
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 0.94
• Brakes
• Brake Type: Power
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.58 x 1.51
• Rear Brake Rotor Diam x Thickness (in): 13.58 x 1.35
• Tires
• Front Tire Order Code: T27
• Rear Tire Order Code: T27
• Spare Tire Order Code: 51A
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 3042
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): 3042
• Revolutions/Mile @ 45 mph - Front: 677
• Revolutions/Mile @ 45 mph - Rear: 677
• Revolutions/Mile @ 45 mph - Spare: 677
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 16 x 7
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.0
• Turning Diameter - Curb to Curb (ft): 48.0
• Turning Diameter - Wall to Wall (ft): 50.2
• Frame
• Frame Type: Single Channel
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35.0
• Fuel Tank Location: Midship
• Doors
• Side Door Type: RH Dual Hinged
• Exterior Dimensions
• Wheelbase (in): 138.0
• Length, Overall w/rear bumper (in): 216.7
• Width, Max w/o mirrors (in): 79.3
• Height, Overall (in): 81.9
• Overhang, Front (in): 34.9
• Overhang, Rear w/bumper (in): 43.8
• Ground to Top of Load Floor (in): 30.1
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Rear Door Opening Height (in): 48.2
• Rear Door Opening Width (in): 54.4
• Side Door Opening Height (in): 48.1
• Side Door Opening Width (in): 44.8
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): 20.6
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 138.7
• Cargo Area Length @ Floor to Seat 1 (in): 121.4
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.5
• Cargo Box (Area) Height (in): 53.9
• Cargo Volume (ft³): 230.6
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 42.0
• Front Leg Room (in): 40.0
• Front Shoulder Room (in): 68.1
• Front Hip Room (in): 65.5
• Summary

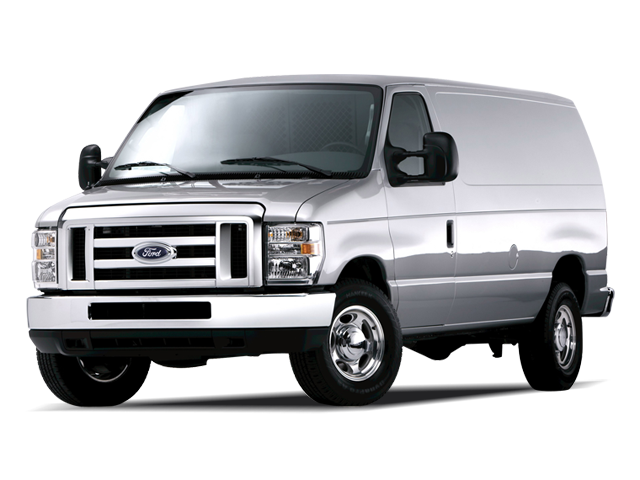

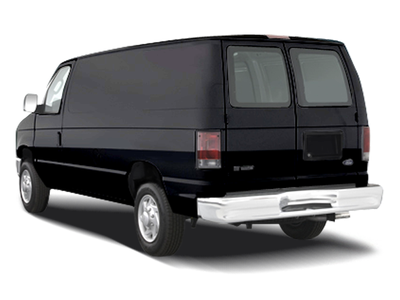

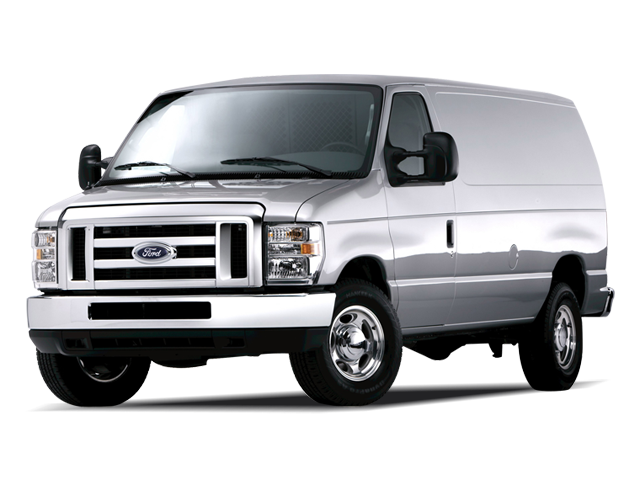

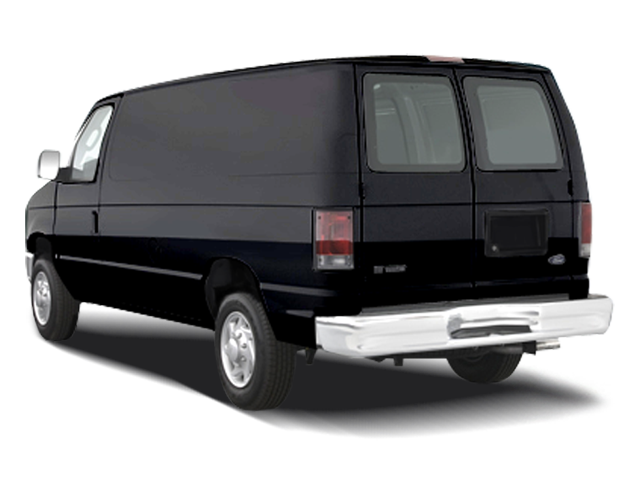

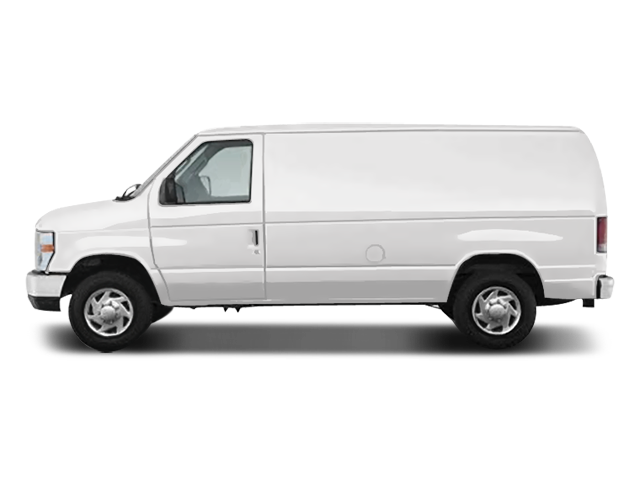

• Vehicle Name: Ford Econoline Cargo Van
• Body Style: E-250
• Body Code: 138
