• P265/70R17 all-terrain OWL tires
• 17" machined aluminum wheels w/painted accents
• Full-size spare tire w/lock, under frame winch-type carrier, safety catch
• Chrome front bumper w/black lower valance & molded-in-color upper fascia
• Chrome rear step bumper
• Black front/rear stone cuffs
• Outer scuff pad
• Chrome grille surround w/chrome "bar style" insert
• Autolamp -inc: automatic on/off headlamps
• Cargo lamp integrated w/high mount stop light
• Fog lamps
• Black pwr side mirrors
• Fixed rear window
• Rear privacy tint glass
• Variable speed intermittent wipers
• Black door & tailgate handles
• (4) full-size doors
• Removable tailgate w/key lock & lift assist

• AM/FM stereo w/CD/MP3 player -inc: clock, speed compensated volume control, aux audio input jack

• Cloth 40/20/40 split bench front seat w/manual driver lumbar
• 60/40 flip-up rear split bench seat
• Color-coordinated carpet -inc: carpeted front/rear floor mats
• Driver & front passenger door scuff plates
• Color-coordinated urethane steering wheel
• Tilt steering column
• Display center -inc: warning messages & text functions
• Customer info display
• Outside temp gauge
• Pwr windows w/driver side 1-touch down
• Delayed accessory pwr
• Pwr door locks w/autolock feature
• Perimeter alarm
• Remote keyless entry w/integrated key transmitter, illuminated entry & panic button
• Cruise control
• SecuriLock anti-theft ignition (PATS)
• Manual air conditioning
• Chrome ring w/obsidian vanes air conditioning registers
• Deployable cupholder under middle seat
• Rear door cupholders
• Instrument panel mounted cigar lighter
• Front pwr point
• Rear pwr point
• Compass
• Overhead console w/(2) storage bins
• Driver & front passenger covered visor vanity mirrors
• Front passenger side A-pillar grab handle
• 2nd row B-pillar grab handles
• Front/rear map lights
• Fade-to-off interior lighting

• Anti-lock braking system (ABS)
• AdvanceTrac w/roll stability control (RSC)
• Dual stage driver & passenger front airbags w/passenger off switch
• Dual stage driver & front passenger seat-mounted side airbags
• Safety Canopy front/rear outboard side curtain airbags
• MyKey system -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, Beltminder w/audio mute
• SOS post crash alert system
• Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors
• Center front 2-point safety belt
• 3-point safety belts at all rear seat positions
• Auto lock safety belt feature for child seats
• Rear door child safety locks
• Tire pressure monitoring system
• Dual note horn

5.0L V8 FFV ENGINE

• (STD)

• Airbags - Front - Side
• Airbags - Front - Side Curtain
• Airbags - Rear - Side Curtain
• Drivetrain Transfer Case: Electronic Hi-Lo Gear Selection
• ABS Brakes (4-Wheel)
• Drivetrain 4WD Type: Part Time
• Power Door Locks
• Exterior Mirrors Power
• Rear Seats 60-40 Split Bench
• Traction Control With Trailer Stability Assist
• Capless Fuel Filler System
• Security Anti-Theft Alarm System
• Rear Seats Folds Up
• Airbags - Front - Dual
• Rear Seats Split Folding
• Security Engine Immobilizer
• Front 12V Power Outlet(s)
• Rear 12V Power Outlet
• Child Seat Anchors LATCH System
• Front Suspension Classification: Independent
• Front Suspension Type: Strut
• Electronic Brakeforce Distribution
• Power Steering
• Windows Front Wipers: Intermittent
• Stability Control
• Traction Control
• Airbags - Passenger - Occupant Sensing Deactivation
• Cargo Bed Light
• Reading Lights Front
• Seatbelts Seatbelt Force Limiters: Front
• Seatbelts Seatbelt Pretensioners: Front
• Warnings And Reminders Maintenance Reminder
• Suspension Stabilizer Bar(s): Front
• One-Touch Windows: 1
• Impact Sensor Post-Collision Safety System
• Roll Stability Control
• Adjustable Rear Headrests
• Audio - Antenna: Mast
• Child Safety Locks
• Front Headrests Adjustable
• Front Seatbelts: 3-Point
• Number Of Front Headrests 2
• Number Of Rear Headrests 3
• Seatbelts Second Row 3-Point
• Tailgate Removable
• Warnings And Reminders Low Fuel Level
• Warnings And Reminders Low Oil Level

• Mileage
• Fuel Economy Est-Combined (MPG): 16
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 155
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 16.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3900
• Gross Axle Wt Rating - Rear (lbs): 3850
• Curb Weight - Front (lbs): 3214
• Curb Weight - Rear (lbs): 2363
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Gross Combined Wt Rating (lbs): 13500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1155
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 7700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1925
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Leaf Spring
• Spring Capacity - Front (lbs): 3900
• Spring Capacity - Rear (lbs): 3850
• Axle Type - Front: Double Wishbone
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4050
• Axle Capacity - Rear (lbs): 3500
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): 36.1
• Shock Absorber Diameter - Rear (mm): 32.0
• Stabilizer Bar Diameter - Front (in): 1.34
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.7 x 9.1
• Rear Brake Rotor Diam x Thickness (in): 13.7 x 9.0
• Tires
• Front Tire Order Code: T7H
• Rear Tire Order Code: T7H
• Spare Tire Order Code: T7H
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.0
• Steering Ratio (:1), At Lock: 20.0
• Turning Diameter - Curb to Curb (ft): 47.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Fully-boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 144.5
• Length, Overall w/o rear bumper (in): 231.9
• Width, Max w/o mirrors (in): 79.2
• Height, Overall (in): 75.9
• Overhang, Front (in): 38.3
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 164.9
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 33.6
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 67.0
• Cargo Box Width @ Top, Rear (in): 60.3
• Cargo Box Width @ Floor (in): 60.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): 60.3
• Cargo Volume (ft³): 55.4
• Ext'd Cab Cargo Volume (ft³): 62.3
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.4
• Front Shoulder Room (in): 65.9
• Front Hip Room (in): 60.5
• Second Head Room (in): 40.3
• Second Leg Room (in): 43.5
• Second Shoulder Room (in): 65.5
• Second Hip Room (in): 64.6
• Summary

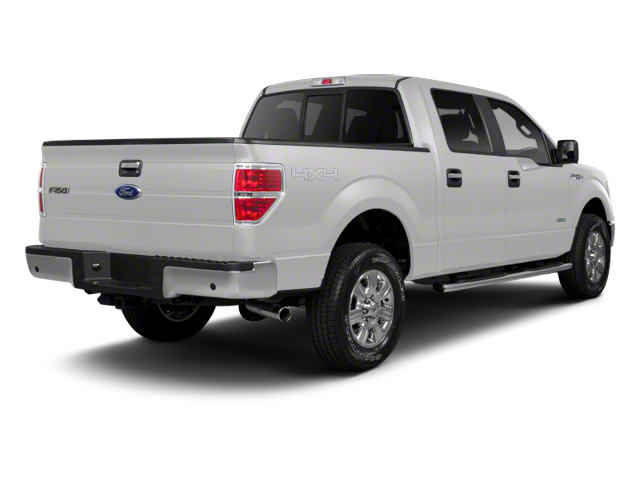

• Vehicle Name: Ford F-150
• Body Style: Crew Cab Pickup
• Body Code: 145" WB
• Emissions
• EPA Greenhouse Gas Score: 1
• Tons/yr of CO2 Emissions @ 15K mi/year: 11.6
